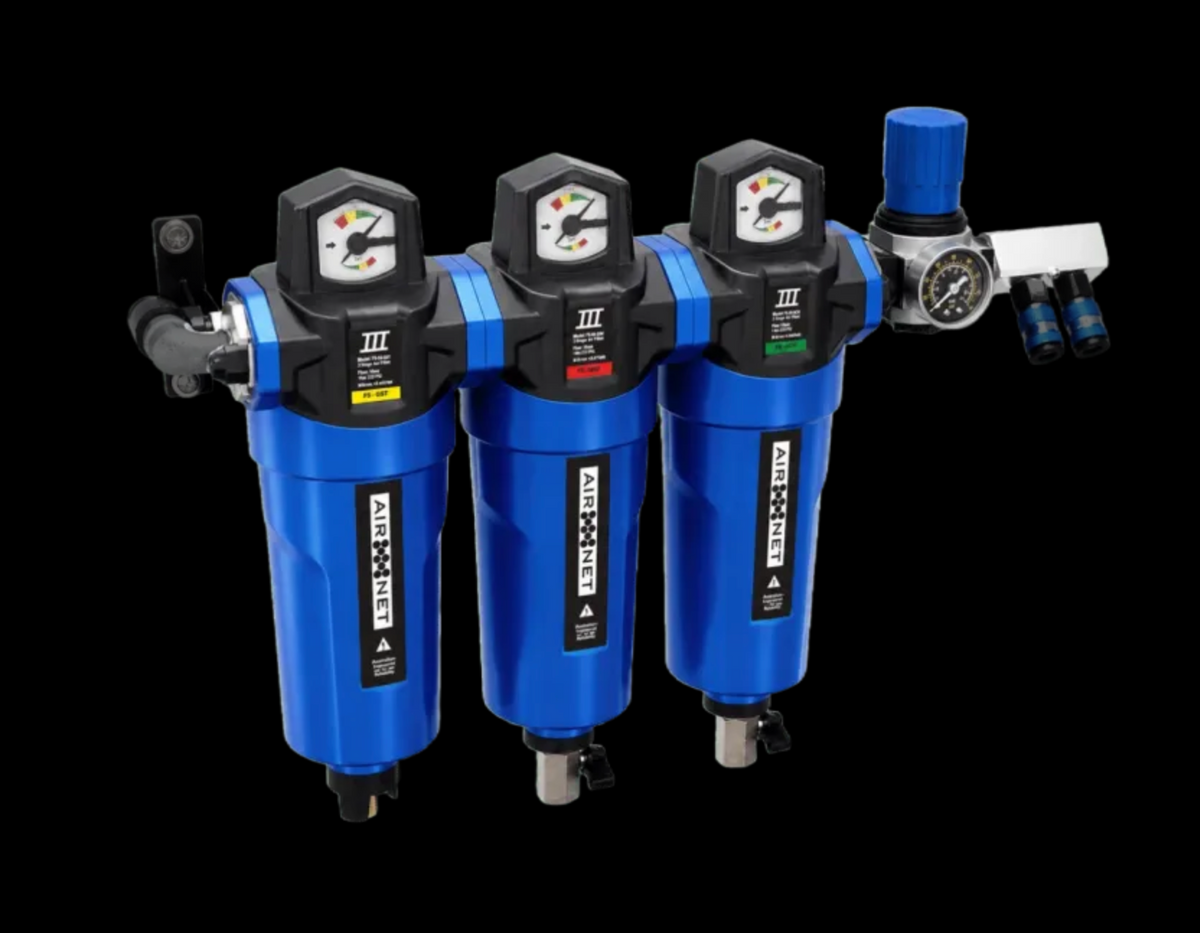

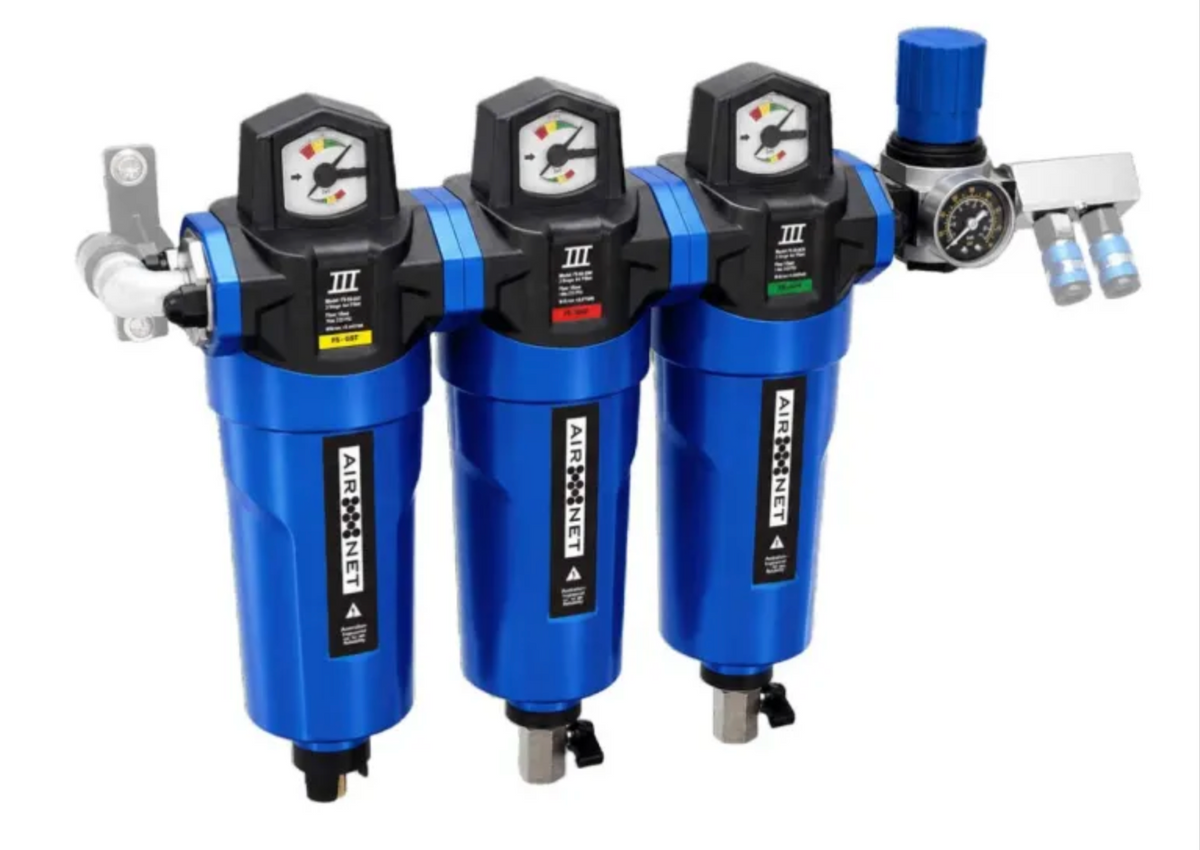

Luma III AIR-NET 3-Stage Filtration System
Luma III AIR-NET 3-Stage Filtration System
Couldn't load pickup availability

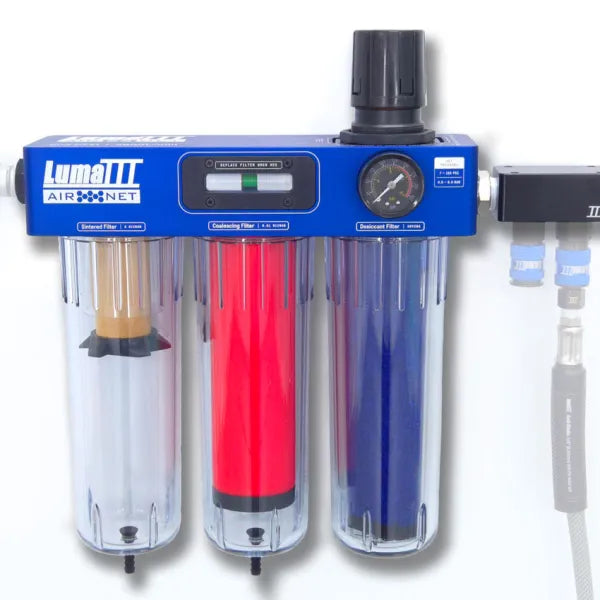

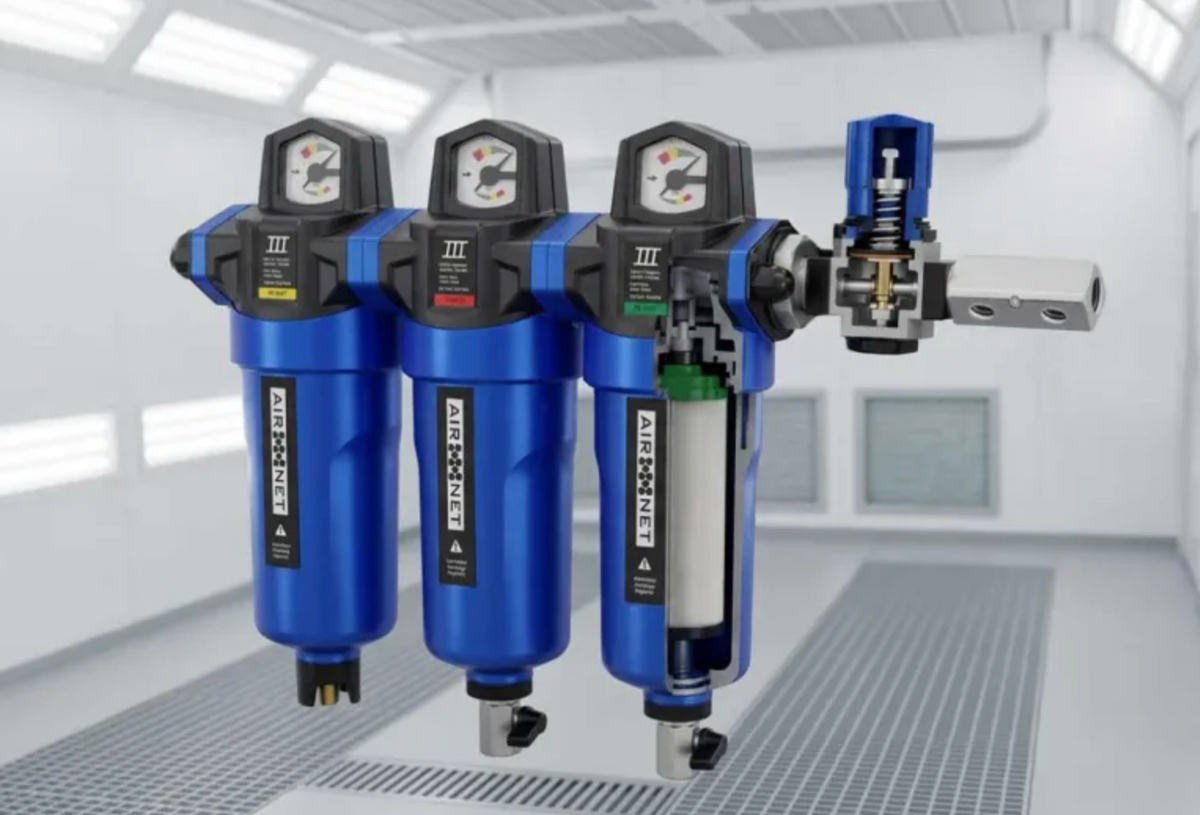

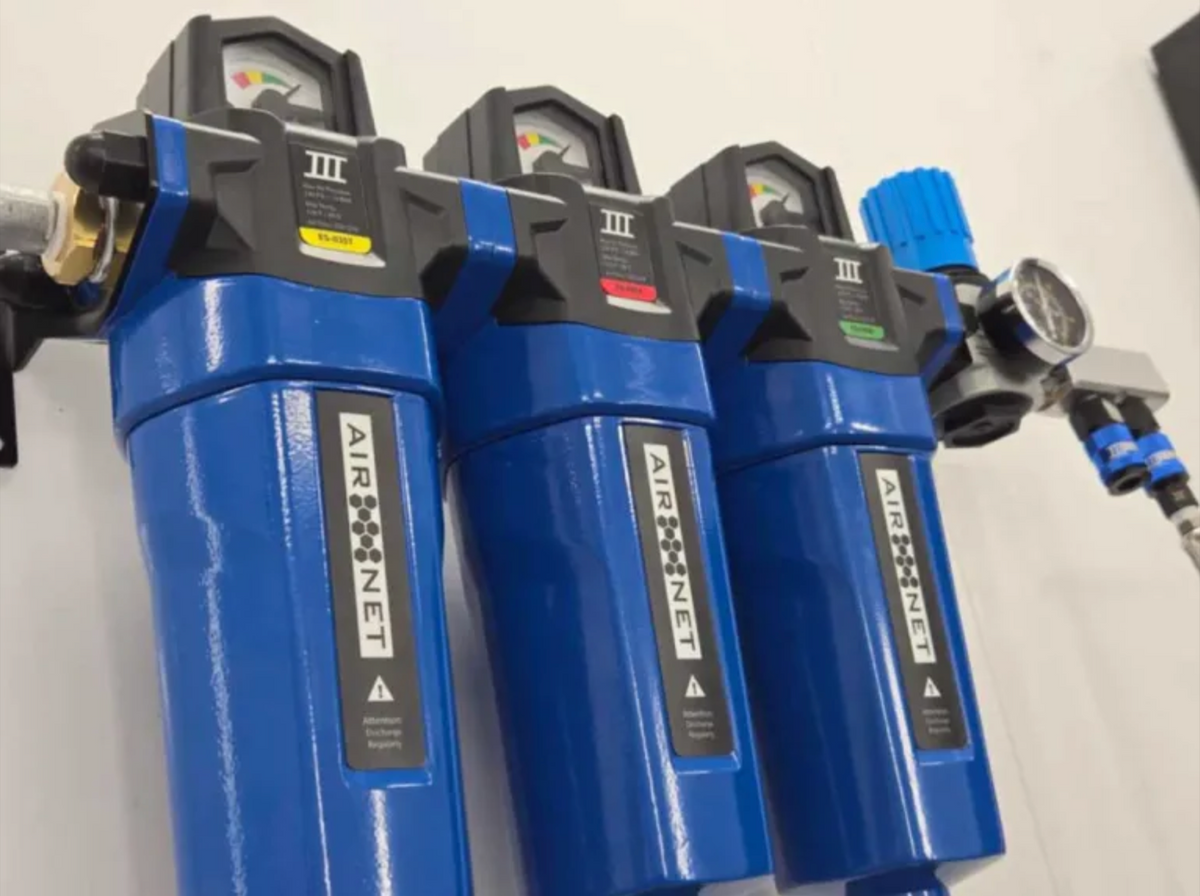

The Luma III AIR-NET is a 3-Stage Paint Filtration system with included regulation and air hose manifold.
The AIR-NET supplies the painter with 131 CFM (3700L/min) while removing 99.99% of dust, oil, moisture and foreign particles up to 0.01 micron, vapor and solvents from your compressed air.
Approved for high pressure pneumatic systems, up to 230 PSI (16bar). The AIR-NET is the perfect option for long lasting, dependable and clean paint worthy air.
Specs & Features
Inlet = 1/2″ NPT
Outlet Ports (x2) = 1/4″ NPT
Designed to last, the Air-Net is a premium option for paint booth air filtration. Offering industry leading purification, the Air-Net aids in efficient and clean refinishing results.
Outfitted with durable industrial canisters, the Air-Net is the perfect three stage filtration system for running compressed air in the spray paint booth.

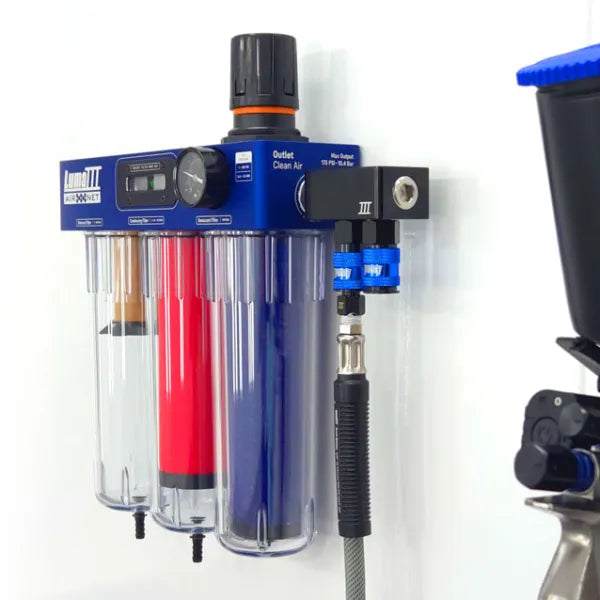

Paint booth wall attachment assembly included.

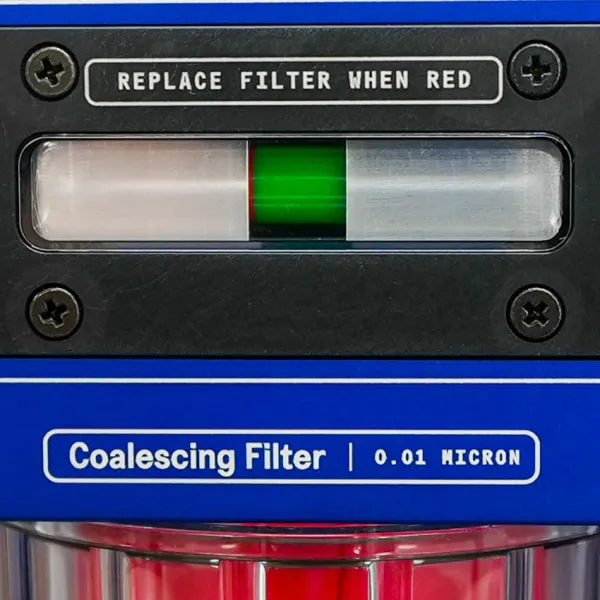

Health Indication

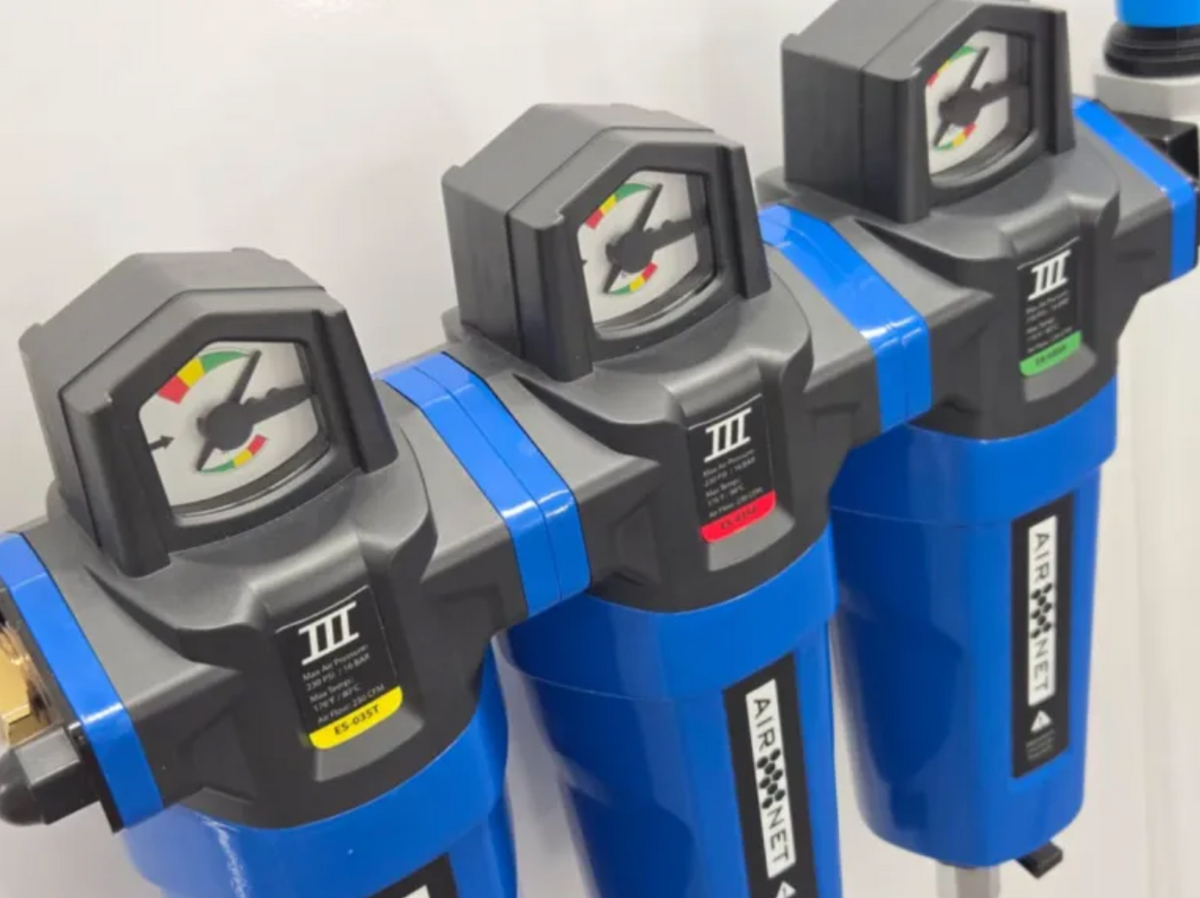

Simple health indication. The flow gauge measures airflow, and the needle rotates toward red as the filters become clogged, indicating that it is time for a wash or a replacement. A quick check before you spray confirms your air is booth ready.
Clean Painting Air
The included air-drying features and quality coalescing removes 99.99% of moisture, oil and debris particles up to 0.01 micron. Making the AIR-NET the perfect refinishing companion for clean dry booth air.

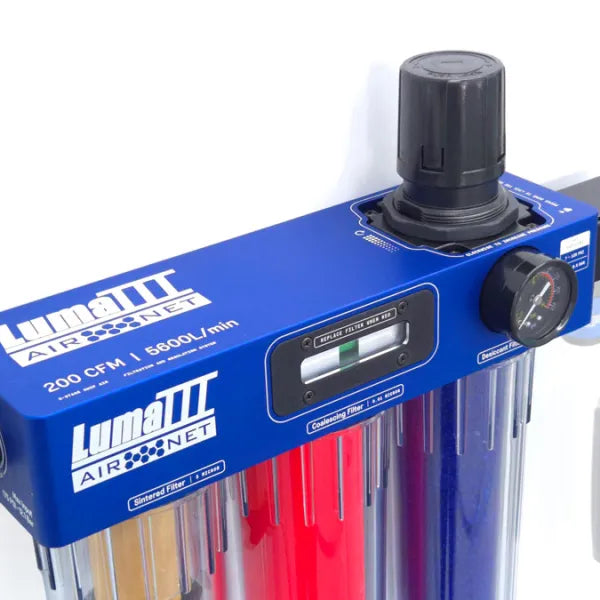

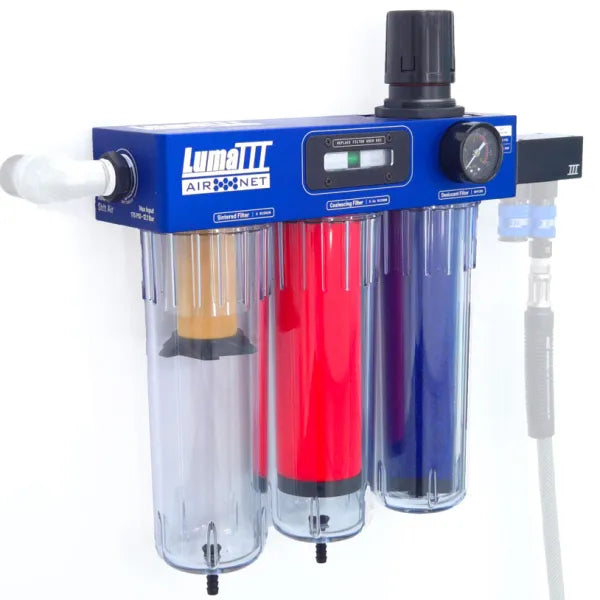

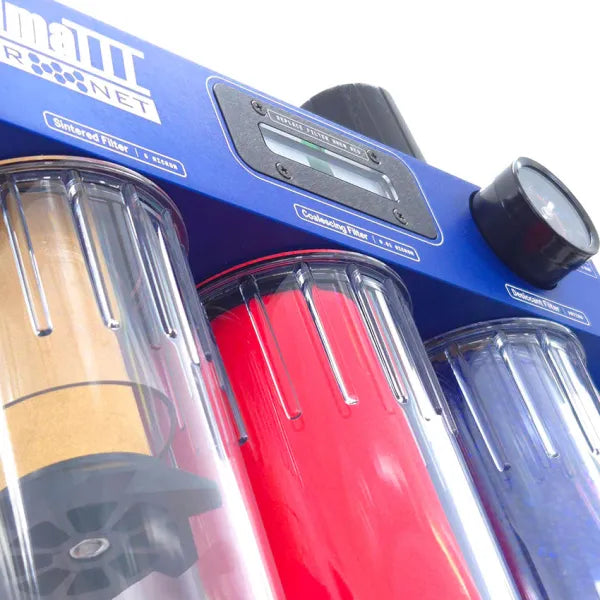

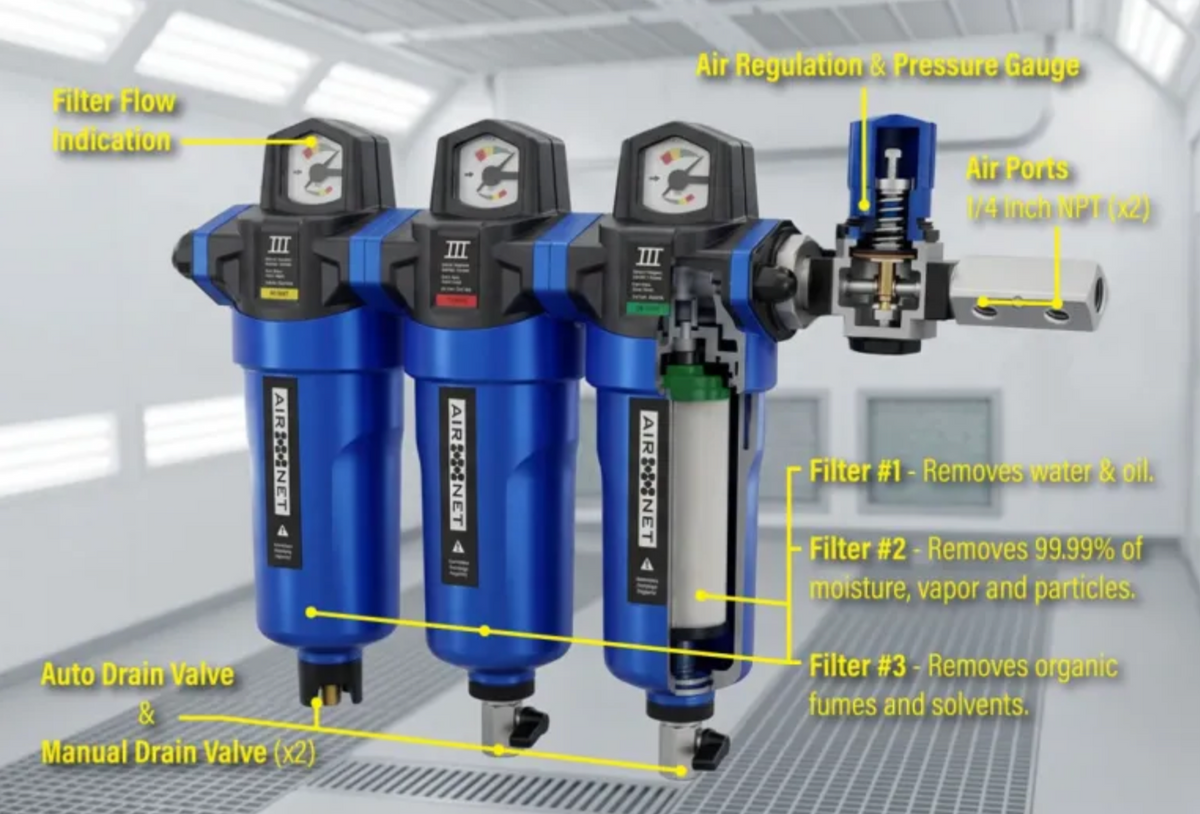

3 Stages of Purification
Stage 1 Yellow. Water and Oil Filter. Removes particles up to 0.1 micron. Auto drain valve.
Stage 2 Red. Coalescing Filter. Removes 99.99% of the moisture, vapor and oil particles up to 0.01 micron. Manual drain valve.
Stage 3 Green. Activated Carbon Filter. Organic fumes and solvents. Manual drain valve.

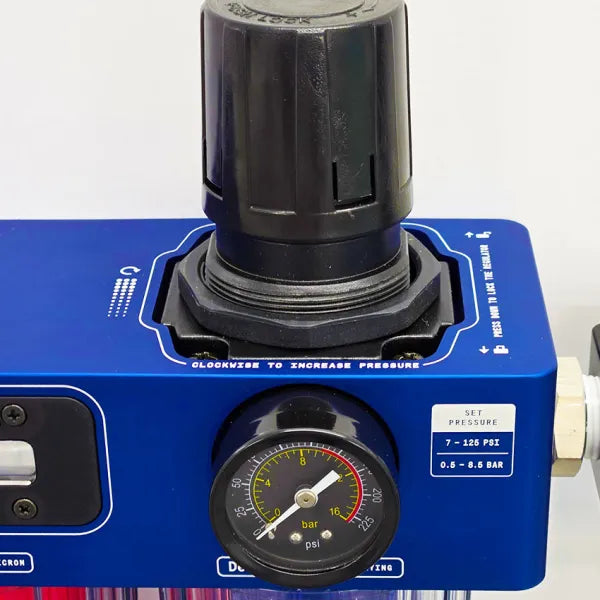

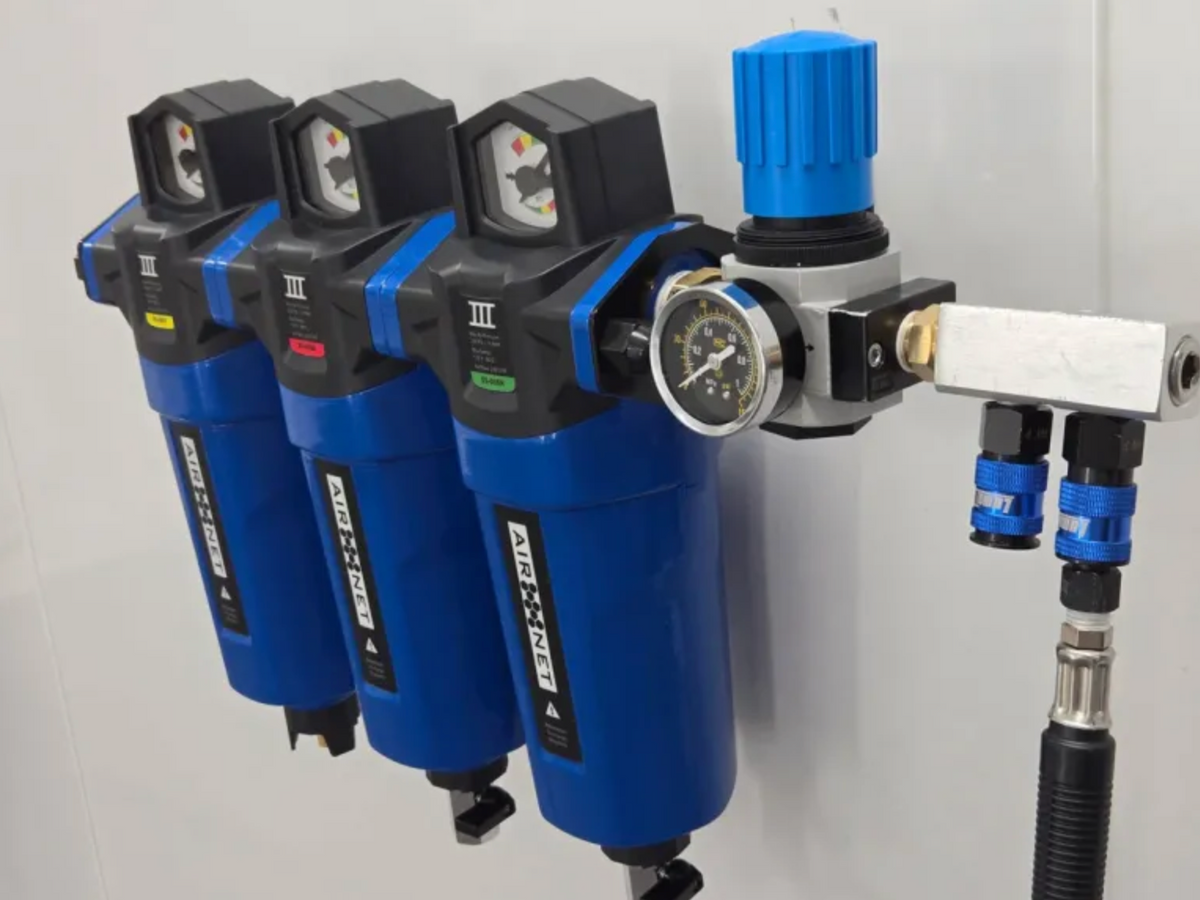

Regulate at the Wall
The included regulator and gauge allows you to set your pressure “at the wall” or just before your supplied paint gun air hose.

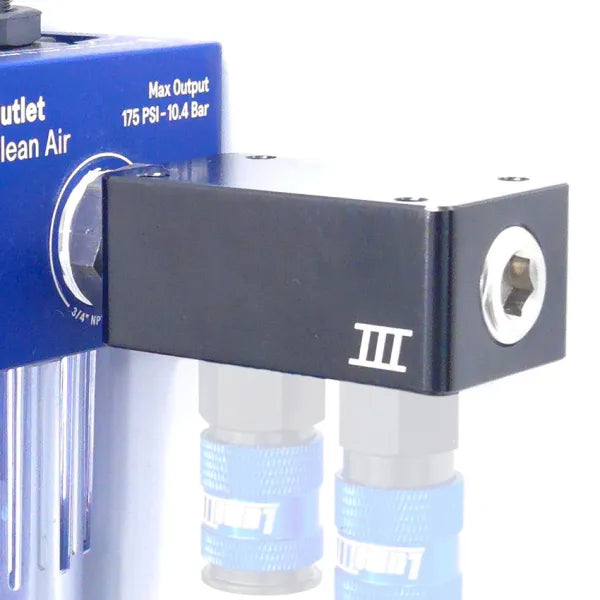

Included Air Hose Ports
The included air manifold comes ready to accept two 1/4″ NPT (popular industry thread size) couplers, fittings and air hose. Paint booth equipped mono-block.
